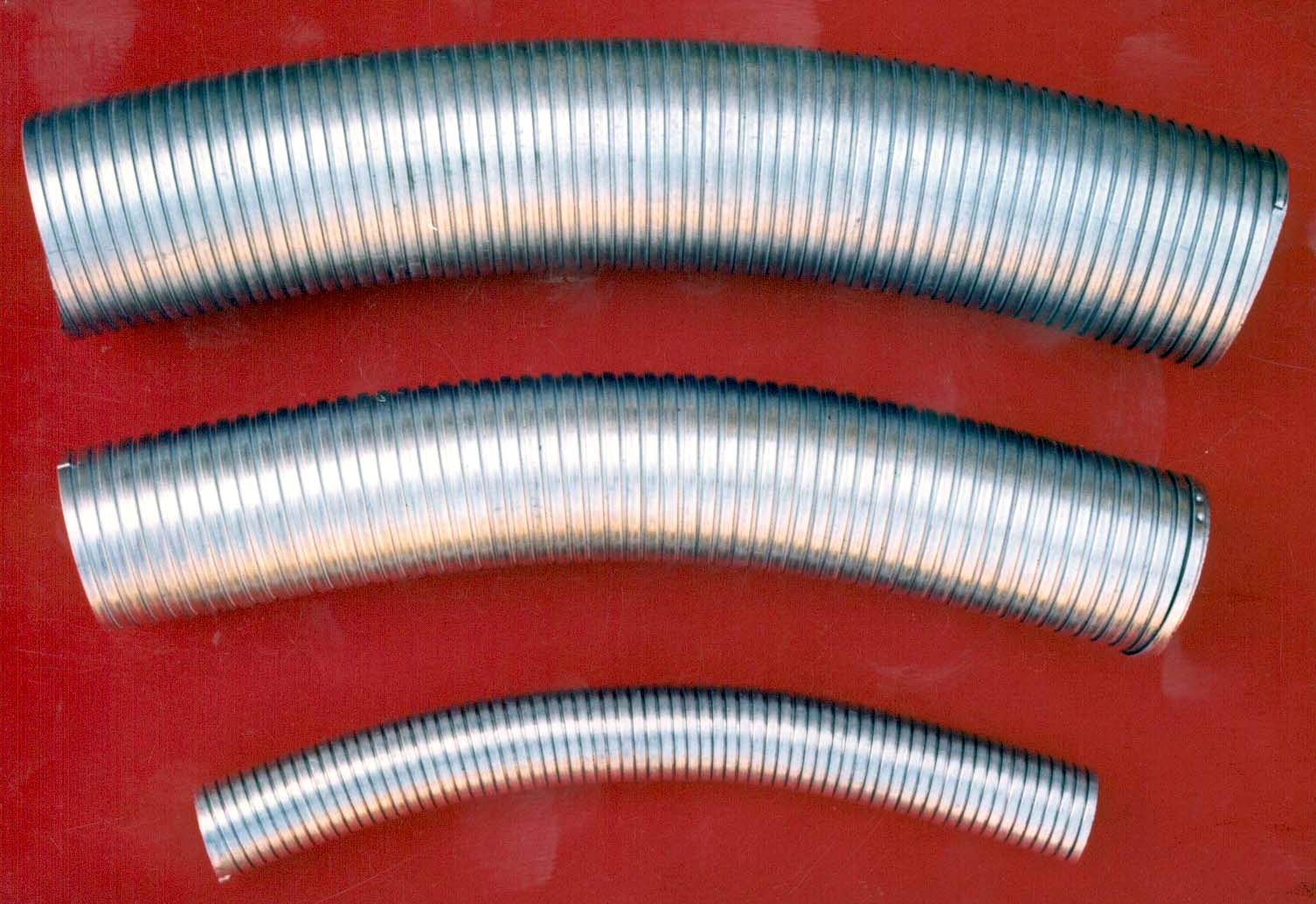

Force-and-suction „KA” hoses are manufactured from a special „AGRAFF” profile self-sealing material . Applicable for pressures smaller than 1 bar.
Description:
The code for Force-and-suction system tubes is „KA”. The numbers after these letters are referring to technical data.
Force-and-suction hose „KA 60-600 Celsius ”
Application:
Force-and-suction hoses are used for piping exhaust gases of vehicles and fixed combustion engines .
Product information:
Type |
Inside
d
mm
|
Outside
D
mm
|
Bending
radius
mm
|
Weight
Kg/m |
KA-35 |
35 |
39 |
300 |
0 ,88 |
KA-38 |
38 |
42 |
330 |
0 ,95 |
KA-40 |
40 |
44 |
340 |
1 ,00 |
KA-42 |
42 |
46 |
360 |
1 ,05 |
KA-45 |
45 |
49 |
380 |
1 ,12 |
KA-50 |
50 |
54 |
450 |
1 ,25 |
KA-55 |
55 |
59 |
500 |
1 ,35 |
KA-60 |
60 |
64 |
400 |
1 ,40 |
KA-70 |
70 |
74 |
440 |
1 ,70 |
KA-80 |
80 |
84 |
470 |
1 ,80 |
KA-100 |
100 |
104 |
530 |
2 ,25 |
KA-110 |
110 |
114 |
520 |
2 ,50 |
KA-120 |
120 |
124 |
610 |
2 ,60 |
KA-140 |
140 |
144 |
680 |
2 ,80 |
KA-150 |
150 |
154 |
730 |
3 ,10 |
KA-160 |
160 |
164 |
780 |
3 ,25 |
KA-180 |
180 |
184 |
870 |
3 ,60 |
KA-200 |
200 |
204 |
950 |
4 ,00 |
