PROTECTIVE HOSE MADE OF LINKED MATERIAL


Field of application : for the mechanical protection of electric wires , cables .

Caution ! Twisting force is not allowed .

Sealing : not sealed , not pressure-tight .

Material : Stainless steel quality AISI 304 WNr .: 1.4301

Product information:

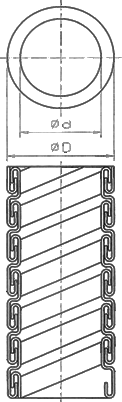

Type

Inside (d)
mm

Outside
(D)
mm

Material
mm

Bending
radius
(R) min

Rm
(N)

6x8 ,2

6

8 ,2

8x0,2

30

1500

6,3x8,4

6 ,3

8 ,4

8x0,2

30

1500

6x8,8

6

8 ,8

8x0,3

40

2200

11x14,7

11

14 ,7

8x0,2

55

1600

11x13,2

11

13 ,2

8x0,2

50

1600
