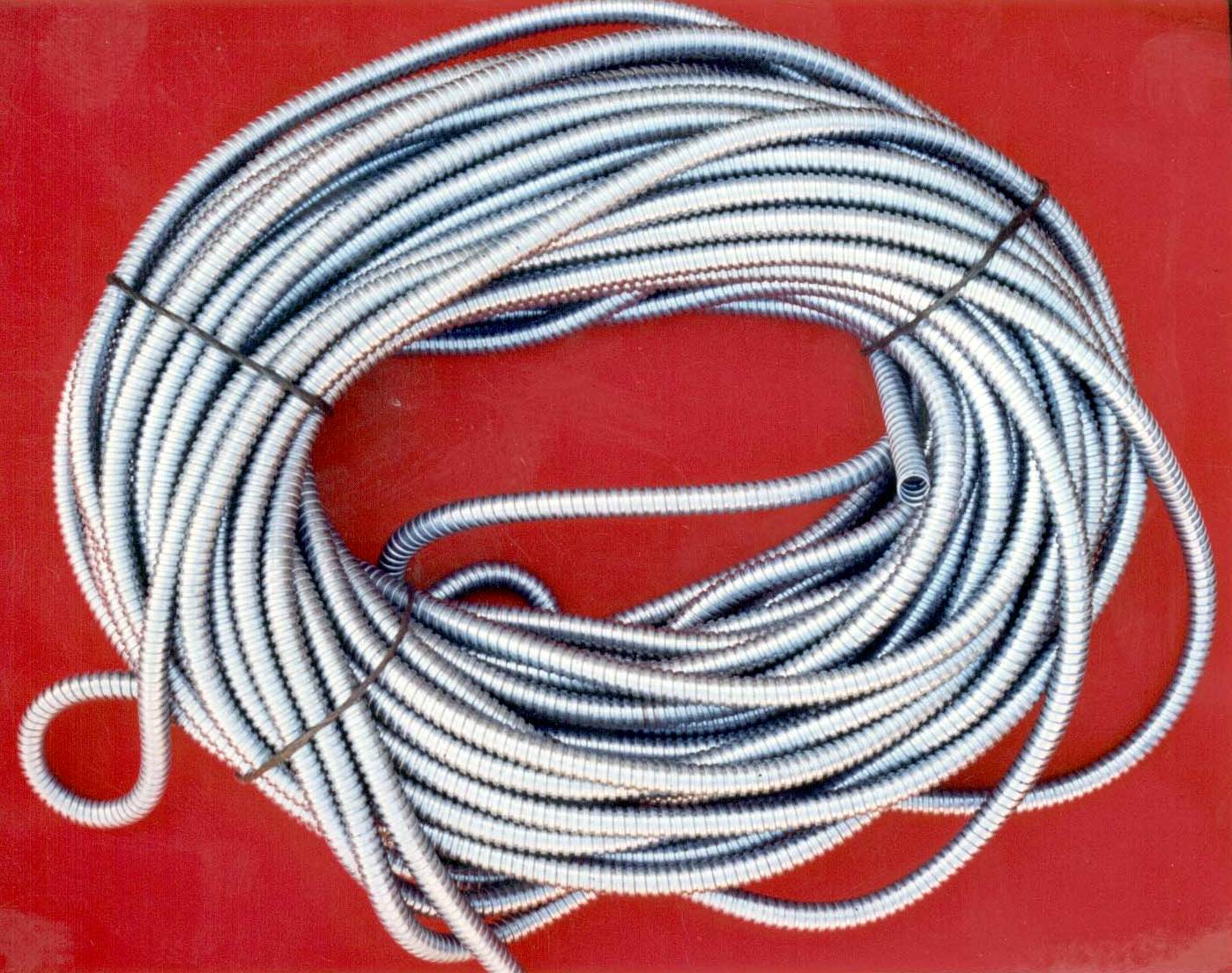

Field of application:
For the mechanical protection of electric wires , cables and hoses .
Caution ! Twisting force is not allowed .
Sealing:
Not sealed , not pressure-tight .
Material:
Galvanised , surface treated steel , aluminium , copper and aluminised steel tape .
Product information:
Type |
Inside
(d)
mm
|
Outside
(D)
mm
|
Bending
radius
mm
|
Weight
Kg/m
|
V-6 |
6 |
8 |
30 |
0 ,08 |
V-7 |
7 |
9 |
33 |
0 ,10 |
V-8 |
8 |
10 |
35 |
0 ,11 |
V-9 |
9 |
12 |
38 |
0 ,12 |
V-10 |
10 |
13 |
40 |
0 ,13 |
V-11 |
11 |
14 |
42 |
0 ,15 |
V-12 |
12 |
16 |
45 |
0 ,16 |
V-13 |
12 |
17 |
48 |
0 ,18 |
V-15 |
15 |
20 |
55 |
0 ,23 |
V-18 |
18 |
23 |
60 |
0 ,30 |
V-20 |
20 |
25 |
65 |
0 ,34 |
V-21 |
21 |
26 |
67 |
0 ,36 |
V-23 |
23 |
28 |
70 |
0 ,39 |
V-25 |
25 |
31 |
80 |
0 ,52 |
V-29 |
29 |
35 |
89 |
0 ,60 |
V-30 |
30 |
36 |
90 |
0 ,62 |
V-36 |
36 |
42 |
100 |
0 ,85 |
V-38 |
38 |
45 |
105 |
0 ,87 |
V-40 |
40 |
46 |
110 |
0 ,90 |
V-43 |
43 |
50 |
125 |
0 ,97 |
V-45 |
45 |
52 |
140 |
1 ,05 |
V-50 |
50 |
57 |
160 |
1 ,13 |
V-56 |
56 |
63 |
180 |
1 ,42 |
V-60 |
60 |
67 |
200 |
1 ,71 |
